£131.50 + VAT

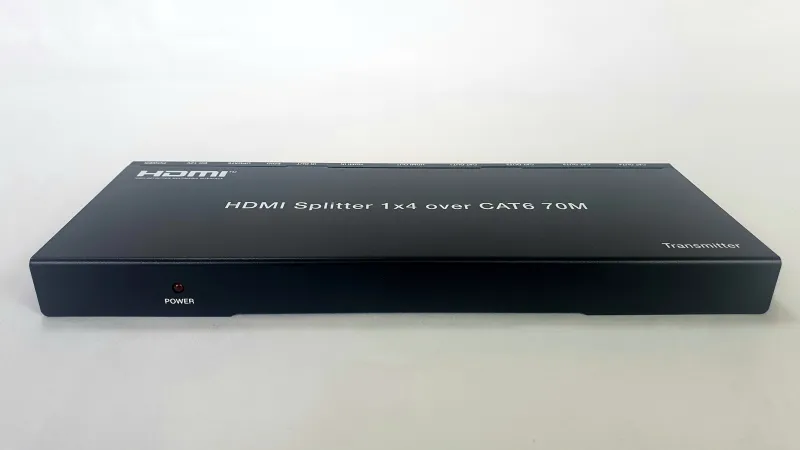

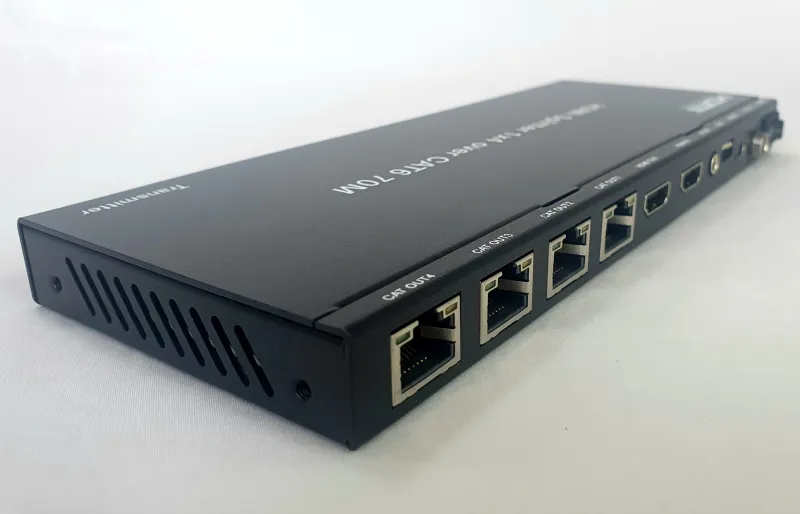

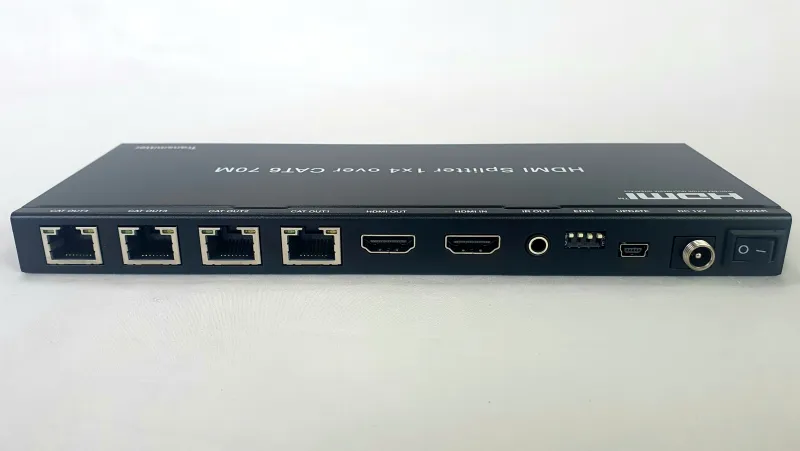

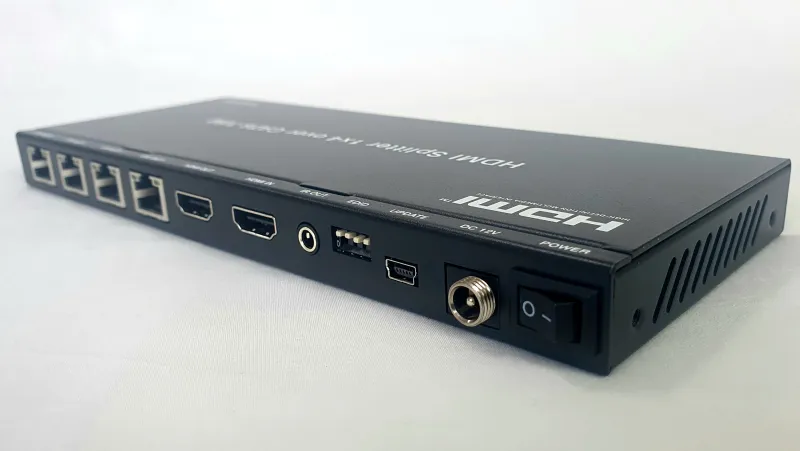

1×4 1080p 70m HDMI Splitter over Cat5e/6/7 Extender with 4 PoC Receivers, HDMI Loop Out and Infra Red control of TV source from each remote display

  • Distribute HD video resolutions up to 1080p to four remote displays up to 70m away via Cat5e/6/7 Ethernet cables and one local display via the HDMI loop out port.
  • The transmitter will power the four supplied receivers over the Ethernet cables so no spare power supplies are required at the remote display ends.
  • Infra Red pass-through allows you to control the HD TV source from in front of any of the remote displays. Cables are included.

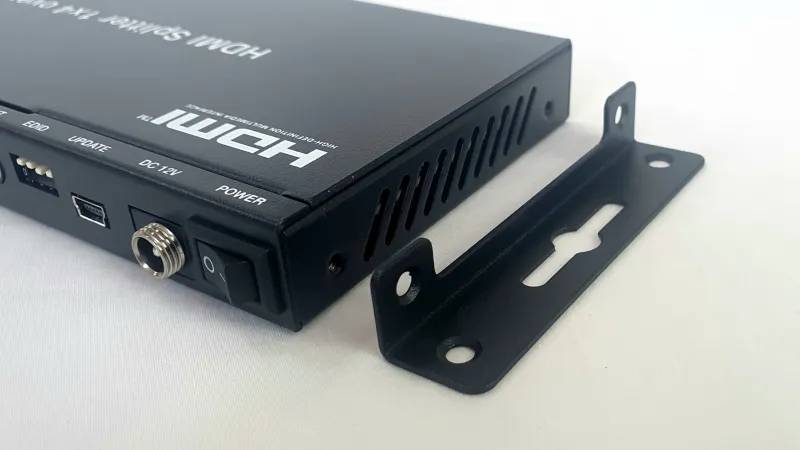

  • This small form factor splitter is supplied with wall mounting ears for convenience
  • For distribution of 4K / UHD resolutions please see our range of 4K splitters and matrix switches.

76 in stock

Product Code: SPHD14E-70 Category: Tags: , Brand:

Description

Distribute 1 HDMI source to any 4 remote display devices over Cat5e/6/7 Ethernet cable and to 1 local display via HDMI cable connected to the HDMI loop out port. The system has a transmission range of up to 70m for HD resolutions up to 1080p when using CAT6 or above.

The remote receivers are powered over cable (PoC) from the transmitter which means that no additional power source is required at the display end. The PoC feature is one way – the transmitter can not be powered from the receiver end.

This system supports one way IR control signal pass-through which allows the user to control the TV source from in front of any of the remote displays. The required IR receiver and emitter cables are all included.

The system is HDCP1.4 and HDMI 1.4 compliant and will transmit Sky, Virgin, Freeview, Freesat and other HD sources. If you intend to distribute SkyQ UHD, Virgin UHD or other 4K channels you will need our 4K60Hz system

SPECIFICATIONS

  • Compliance : HDMI 1.4 & HDCP 1.4
  • Video Bandwidth : 297MHz / 10.2Gbps
  • Video Resolution : 480i~1080p @ 50/60Hz
  • Colour Depth : 8-bit, 10-bit, 12-bit
  • Colour Space : RGB, YCbCr_4:4:4/4:4:2 , YUV_4:2:0
  • Audio Formats : LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio
  • Transmission Distance : 1080p@60Hz up to 70m
  • Dimensions – Transmitter : 210mm x 83mm x 18mm Weight – 448g
  • Diminsions – Receiver : 79.5mm x 69mm x 16.5mm Weight 130g
  • Power Supply : 12V / 2.5A DC Power Supply



User Manual

Download(1 MB)
