$127.00 + VAT

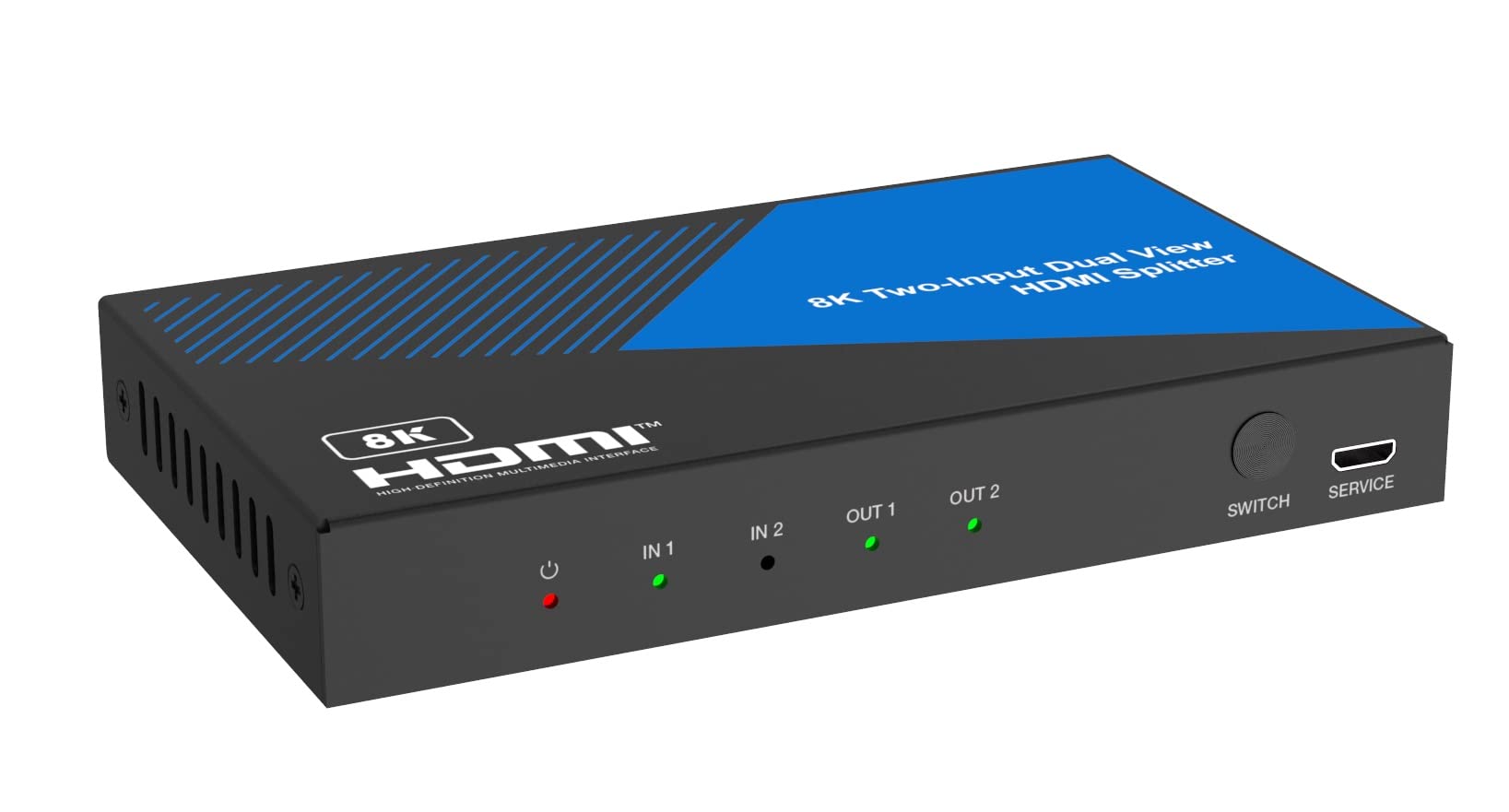

2×2 8K@60Hz or 4k@120Hz UltraHD HDMI Splitter and Switch. 40Gbps. Connect two 8K displays to either of two 8K inputs

  • Ideal for home cinema, gaming, digital signage and presentation use.
  • Switch between two HDMI Inputs and distribute the selected input to up to two displays
  • Supports auto switching to latest detected signal and will remember which input was selected after power recycle.
  • HDMI 2.1 and HDCP 2.3 Compliant. 40Gbps Video Bandwidth
  • Supports video resolutions up to 8K@60Hz YCBCR 4:2:0 10bit, 8K30 RGB/ YCBCR 4:4:4 10bit or,4K120 RGB/YCBCR 4:4:4 10bit

6 in stock

Product Code: SW8K22H Categories: , Tags: , , Brand:

Description

This device combines a splitter with a switch so you can distribute either one of two connected HDMI input sources to two displays. Use it as a switcher and a splitter. It supports video resolutions up to 8K@60 4:2:0 and is HDMI2.1 and HDCP2.3 compliant so ideal for your home cinema or high resolution presentation requirements.

For full details please see the product manual linked on this page

Please use HDMI 2.1 cables and seek HDMI 2.1 ports on input sources and output displays. Ensure that HDMI cables lengths do not exceed 3m @ 8K, 5m @ 4K or 10m @ 1080p. Connect the cable before powering the equipment.

FEATURES

  • 2×1 Switch with Dual Output / Splitter
  • HDMI 2.1 and HDCP 2.3 compliant
  • Supports 40Gbps video bandwidth
  • Video resolution : Up to 8K@60Hz YCBCR 4:2:0 10bit, 8K30 RGB/YCBCR 4:4:4 10bit or, 4K120 RGB/YCBCR 4:4:4 10bitup to 8K@60Hz 4:2:0
  • Color Depth : 8-bit, 10-bit, 12-bit
  • Color Space : RGB, YCbCr 4:4:4 / 4:2:2. YCbCr 4:2:0
  • Supports HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR pass through
  • HDMI Audio Formats : LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • Built-in Equalizer, Retiming and Driver
  • Auto EDID management
  • Compact design for easy and flexible installation

User Manual

Download(1 MB)
