Description
The ideal HDMI splitter for distributing UHD signals from a single 4K source to up to eight 4K and HD displays using HDMI cables up to 15m long. Ideal for multi-screen CCTV, sports bars, stadiums, shops, lecture halls and digital signage installations with large numbers of displays. Multiple FOURKAY 1×4, 1×8 or 1×16 HDMI splitters can be daisy chained to feed additional displays if required.
This splitter supports up to 18Gbps bandwidth and is HDMI 2.0b and HDCP 2.2 compliant. It supports video resolutions up to 4K@60Hz 4:4:4. Users are able to select between “Auto” (the splitter works out the ideal shared EDID for all connected displays) and “Copy” (the splitter copies the EDID of the display connected to the lowest numbered occupied output port) EDID configurations.

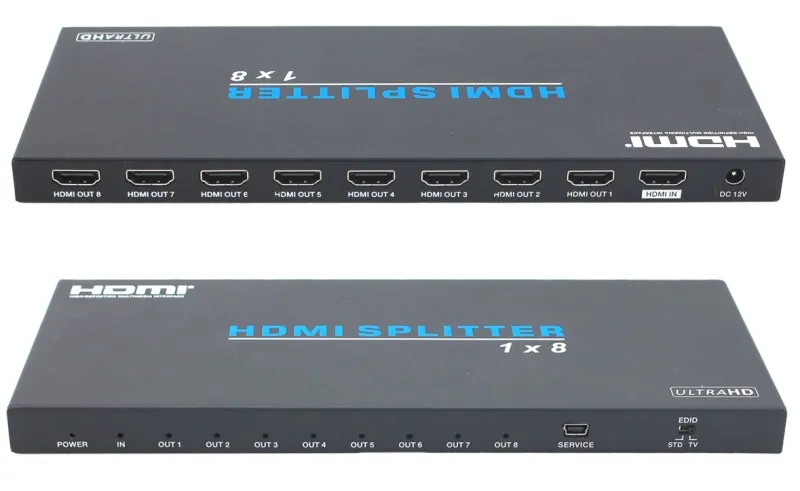

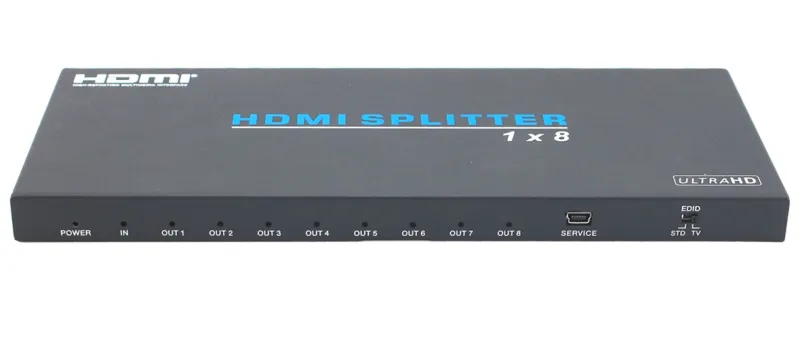

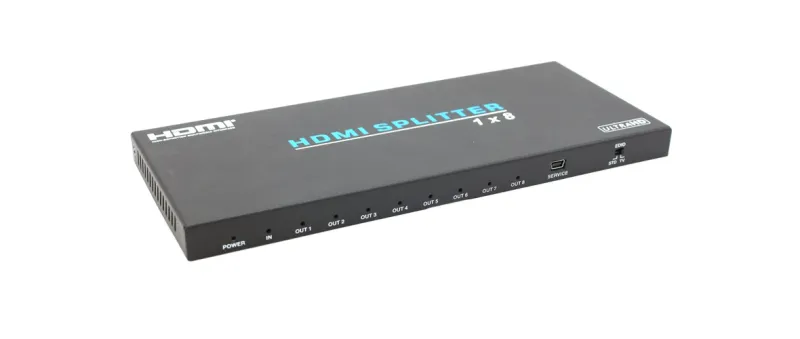

The 1×8 HDMI splitter is small form factor at just 243mm (W) × 102mm (D) × 16mm (H)
FEATURES
- HDMI 2.0b, HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Supports video resolution up to 1080p@50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
- Supports HDMI audio format: PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
