£1,266.00 + VAT

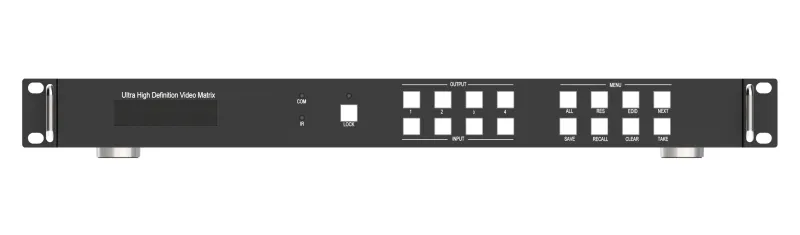

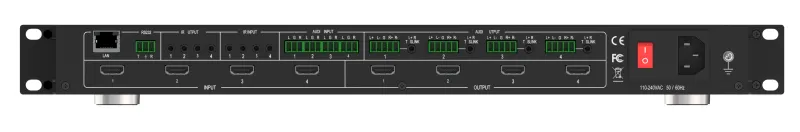

4×4 4K60Hz HDMI Video Wall Matrix with Seamless Switching. TCP/IP and RS232 Control. 1U Rack Mountable

  • 1U Rack mountable 4K HDMI Video Wall Matrix with seamless switching
  • Supports multiple video walls in user defined layouts or can be used as regular matrix on four discrete screens
  • Includes PC control software to manage layouts and switching via RS232 or TCP/IP
  • Matrixed IR remote control pass back to control sources from in front of the displays
  • HDCP2.2 and HDMI 2.0 Compliant

3 in stock

Product Code: MX4K44H-VW Categories: , Tag: Brand:

Description

This 1U rack mountable 4×4 seamless UHD Matrix can connect 4 HDMI sources to 4 HDMI displays in user definable layouts. Supported video resolution is up to 4K60 4:4:4 and the switch is HDCP 2.2 and HDMI 2.0 compliant. The matrix supports one or more video walls and ships with control software to manage video wall layouts and switching. The product provides matrixed IR pass back with IR routing following the video routing. Audio extraction and insertion are also supported.

For full details and specifications please see the user manual linked on this page.

FEATURES

  • HDMI 2.0 and HDCP 2.2 compliant
  • Supports 18 Gbps UHD video bandwidth
  • Seamless switching between sources
  • Supports multiple video wall layouts
  • Matrixed IR remote control of sources
  • Supports HDMI audio extraction and stereo audio insertion into HDMI stream
  • Supports EDID management
  • Color space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
  • Front panel, RS232, TCP/IP (LAN 10M/100M) control
  • Dimensions : 430mm (W) × 220mm (D) × 44mm (H)

PACKAGE CONTENTS

  • 4×4 Seamless UHD Matrix
  • AC Power Cord (UK or EU)
  • Matrix IR Remote
  • IR Receiver cables (1.5 meters)
  • IR Blaster cables (1.5 meters)
  • 3-pin Phoenix Connector
  • CAT6 cable
  • USB to RS232 Cable
  • User Manual

User Manual

Download(1 MB)

Video Wall Management Tool

Download(257 KB)
