£336.00 + VAT

4K 60Hz AV and USB over IP ENCODER with ARC/eARC/Optical audio return. 100m Distribution Range. Combine with multiple encoders and decoders on one data network.

  • Professional Grade AV over IP system for distributing 4K60Hz content over TCP/IP networks where multiple encoders and decoders can be linked into various configurations via Gigabit switches
  • Use these to build matrix switches, switches, video walls or multiviewers over existing or new data networks
  • Encoders/Decoders support inputs up to 4K60 4:4:4 and audio embedding or extracting
  • The product supports ARC/eARC/S/PDIF/Analog audio return function and also supports USB2.0 transmission to support KVM/Camera etc

15 in stock

Product Code: VIP4K100-TX Categories: , Tags: , Brand:

Description

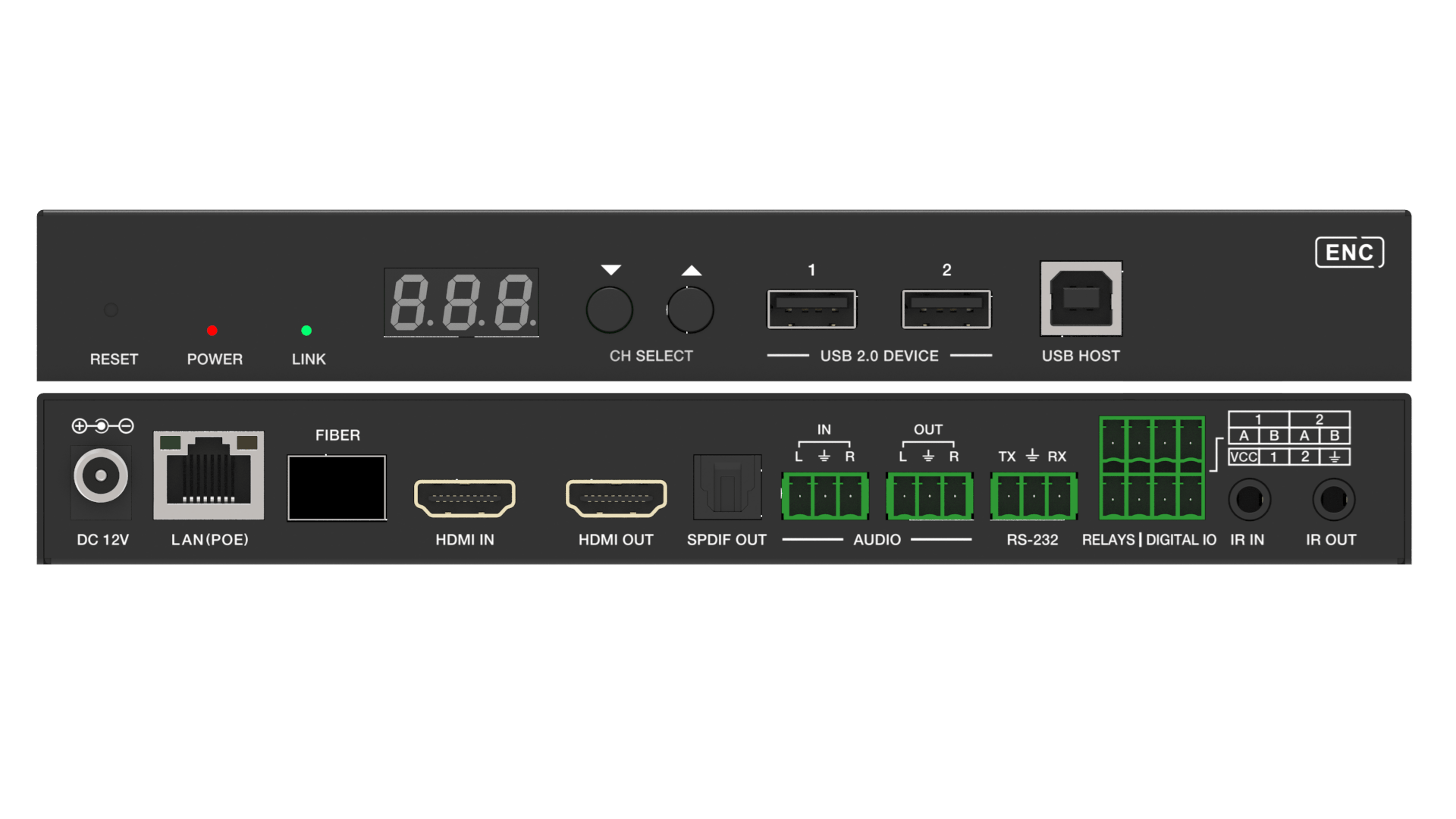

Professional Grade AV over IP system for distributing 4K60Hz content over TCP/IP networks where multiple encoders and decoders can be linked into various configurations via Gigabit switches. Use these to build matrix switches, switches, video walls or multiviewers over data networks.

This product integrates a copper port and a fibre port within a single box. Encoders/Decoders support inputs up to 4K60 4:4:4 and audio embedding or extracting. The product supports ARC, eARC, S/PDIF, and Analog audio return function. Supports USB2.0 transmission to support KVM/Camera. Supports 1G Ethernet, bidirectional RS232, two-way IR and PoE function. Built-in two channel relay ports and two channel I/O ports for contact control.

Built-in MJPEG Substream which supports plenty of API commands to achieve flexible configurations is useful for 3rd party control Apps to preview video content.

FEATURES



  • HDCP 2.2 compliant
  • Support 18Gbps video bandwidth
  • Input and output video resolution is up to 4K60 4:4:4, as specified in HDMI 2.0b
  • Transmit video, analog/digital audio, IR , RS-232, CEC and USB over Ethernet
  • Copper port and Fibre port within a single box
  • ARC/eARC/S/PDIF/Analog audio return function
  • Channel configuration via front panel buttons and LED screen
  • Built-in two channel relay ports and two channel I/O ports for contact control
  • Supports unicast and multicast functions
  • Supports point-to-point, video matrix and video wall functions (video wall supports up to 9×9)
  • Intelligent video wall class management
  • Support MJPEG Substream real-time preview
  • Supports POE function
  • Built-in web page configuration and control, Telnet and SSH as well
  • HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master

User Manual

Download(15 MB)
