$263.00 + VAT

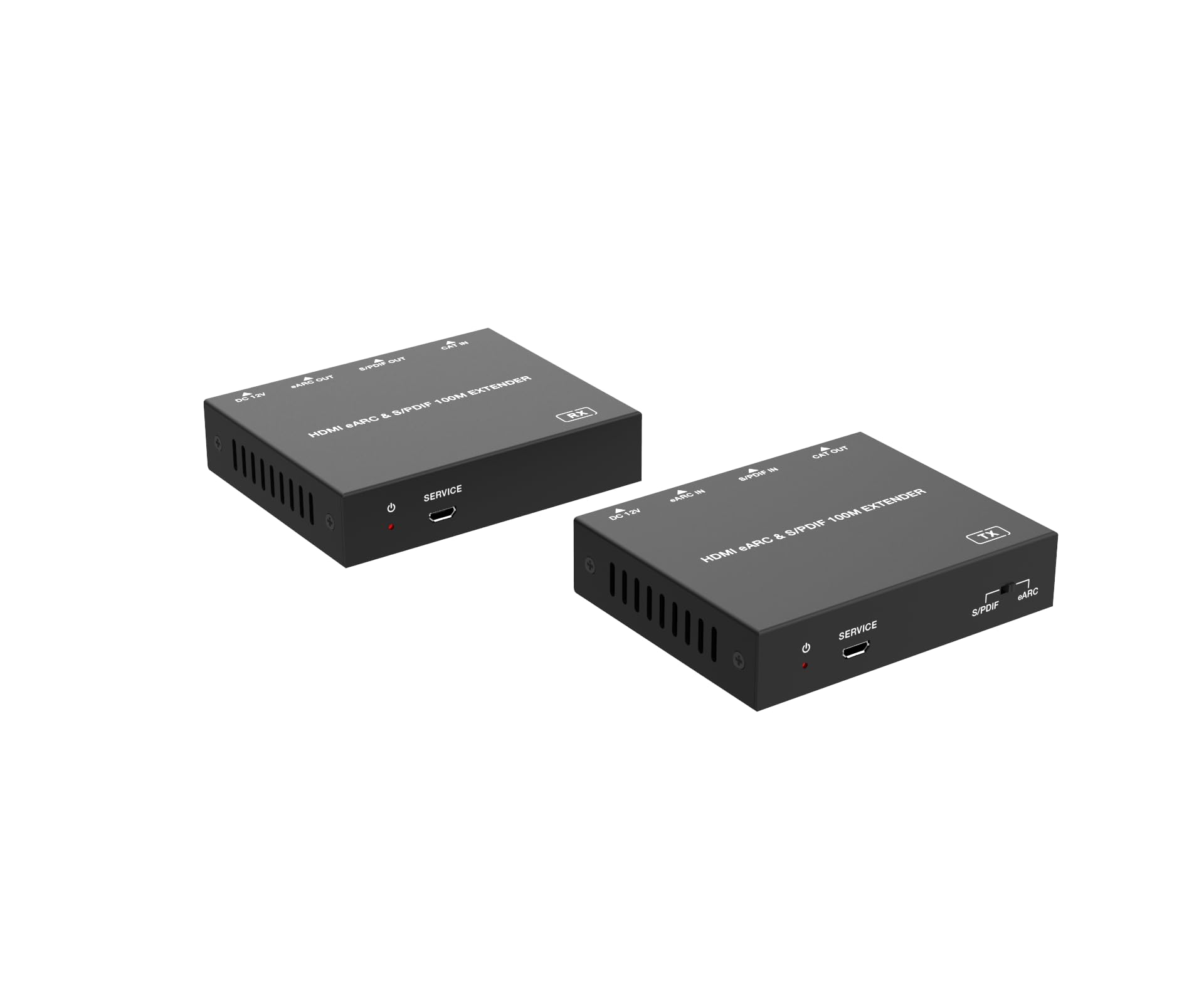

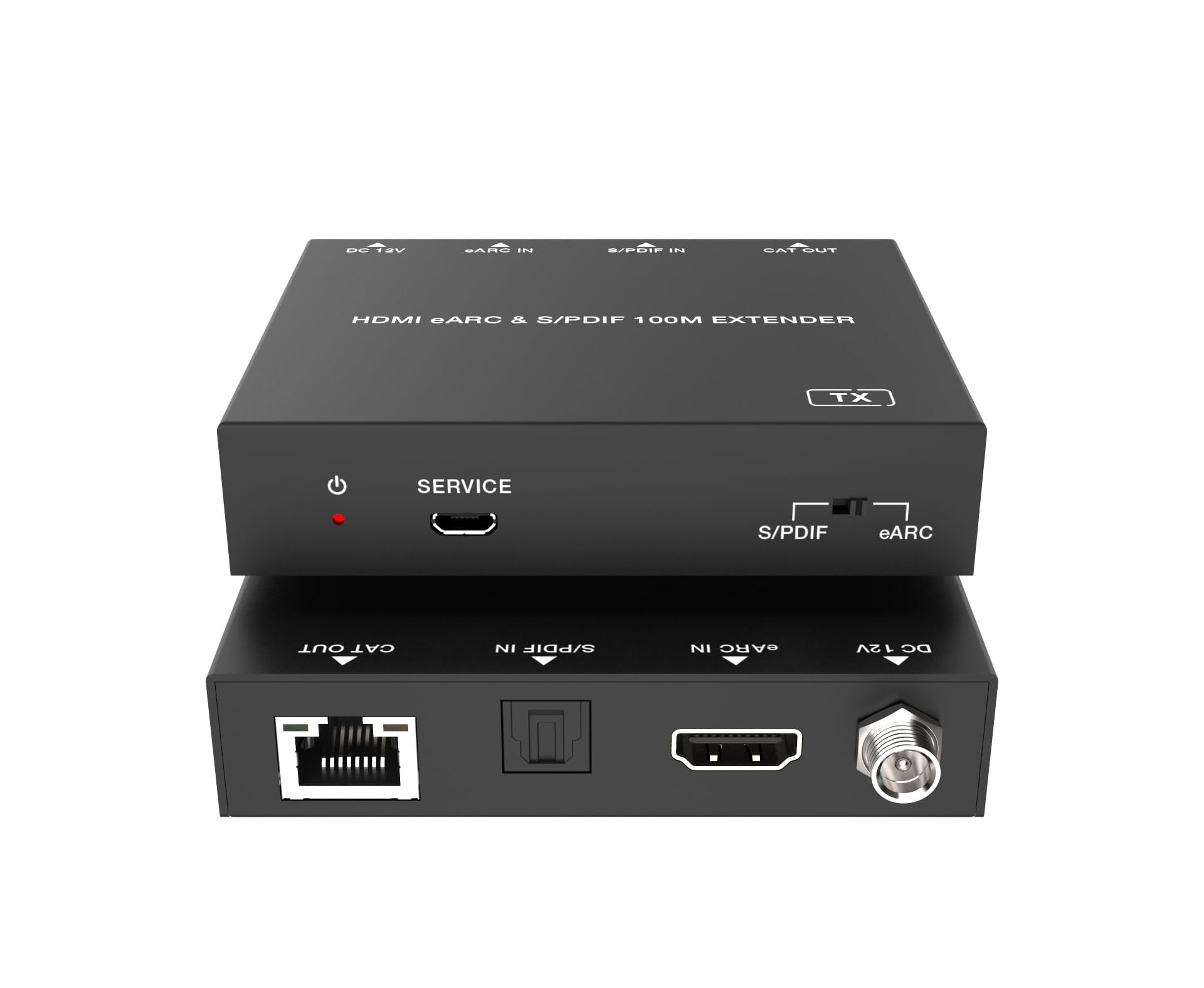

eARC or Digital Optical Audio over CAT5e/6/7 Ethernet Extender with CEC Pass Through. 100m Range. Power over CAT Cable.

  • Plug and play solution for transmitting audio from the HDMI eARC or S/PDIF port (also known as Optical or Toslink port) of a TV to an amplifier, AV Receiver or multi-room audio system up to 100m away over a single point-to-point CAT5e/6/7 cable.
  • The system supports advanced audio formats including: [eARC] PCM 2.0/5.1/7.1ch, DD, DD+, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos [ARC] PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch [S/PDIF] PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
  • TVs without HDMI eARC can transmit optical digital audio from the S/PDIF IN port of the transmitter (TX) to the S/PDIF OUT port of the receiver (RX)
  • Power over Cable (PoC) capability makes installation easy as the single PSU can be connected at either the RX or TX end – wherever power is most conveniently available.
  • Supports CEC pass-through between the HDMI eARC input port on TX and eARC output port on RX to allow a handshake for eARC transmission.

12 in stock

Product Code: EXEARC-H100 Category: Tags: , , , , Brand:

Description

This Audio Extender can transmit either HDMI eARC or S/PDIF audio signals over a distance of up to 100m over a single CAT5e/6/7 cable. This enables the transfer of audio from installed smart TV apps (eg Netflix, iPlayer, Prime Video) back to an AVR, amplifier or other multi room audio system located away from the TV.

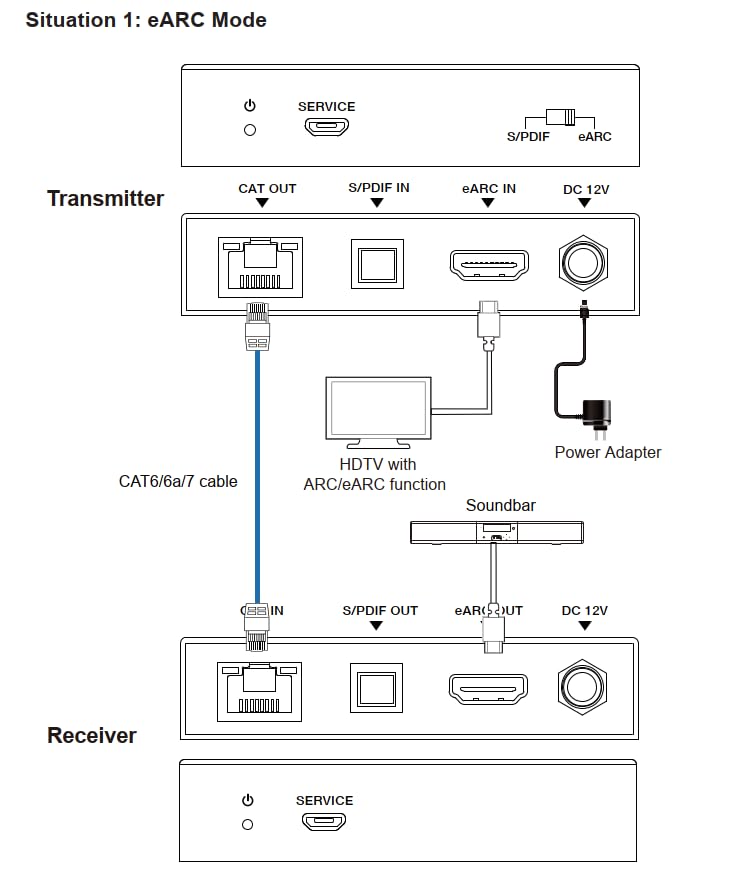

It supports CEC pass-through between the HDMI eARC input port on the transmitter (TX) and the eARC output port on the receiver (RX) to allow the digital handshake for eARC transmission. For TVs without an HDMI eARC function, the extender provides an independent S/PDIF audio pass-through channel to transmit digital optical audio from the S/PDIF IN port of the TX to the S/PDIF OUT port of the RX.

See manual linked on this page for full details.

FEATURES

  • Transmit HDMI eARC or S/PDIF audio signal up to 100m over a single CAT5e/6/7 cable
  • Supports CEC pass-through when HDMI eARC mode is enabled
  • Option of Optical or HDMI audio transmission
  • Supports the following audio formats:
    eARC: PCM 2.0/5.1/7.1ch, DD, DD+, DTS, Dolby TrueHD, DTS-HD MA, Dolby Atmos
    ARC: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
    S/PDIF: PCM 2.0ch, Dolby 5.1ch, DTS 5.1ch
  • Bi-directional PoC (Power over Cable) function and compact design make for easy and flexible installation

User Manual

Download(1 MB)
