£134.00 + VAT

HDBaseT HDMI and IR over Cat6 Ethernet Wallplate Transmitter with 70m Range. Supports 4K@60Hz. Fits UK Single Gang Electrical Box

  • Neat and tidy HDBaseT Transmitter Wallplate to fit 70mm x 70mm x 35mm single gang wall box. 38mm Deep.
  • Alllows transmission of 4K up to 40m or 1080p to 70m. Supports two way IR and RS232 signals to control remote and source equipment.
  • Powered over Cable from the Receiver or with local 24V DC power supply (not included)
  • Pair with our HDBaseT recevier WPEX4K70-RX (ASIN B0BNJJB81Q) to ensure compatibility.
  • HDCP 2.2 and HDMI 2.2 Compliant. Perfect for SkyQ, Virgin UHD and other 4K broadcasts

18 in stock

Product Code: WPEX4K70-TX Category: Tags: , , , Brand:

Description

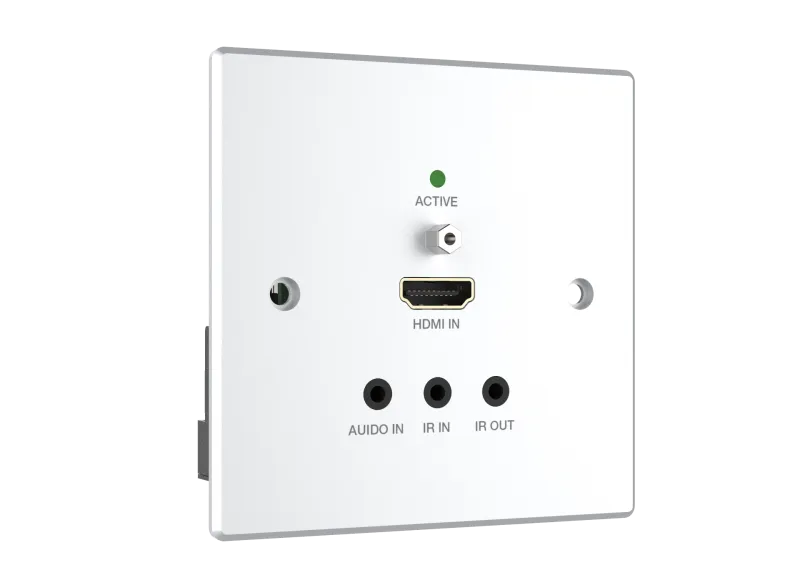

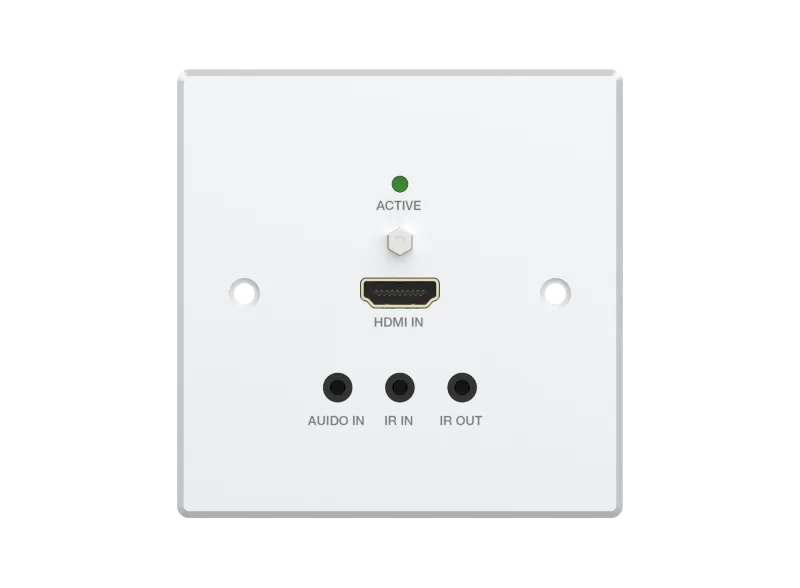

A neat and tidy alternative for HDBaseT transmission. The wallplate offers one HDMI input and an analog audio input within a standard UK single gang 70 × 70 × 35mm wall box. The transmission range over single CAT6/6a cable extend video distribution distance up to 70m for 1080p signal or 40m for 4K signals. Pair this with our HDBaseT receiver (ASIN B0BNJJB81Q) at the display end.

Video resolution up to 4K@60Hz 4:4:4 and HDR, HDR10, HDR10+, Dolby Vision, HLG are supported. The system is HDMI 2.0 and HDCP 2.2 compliant.

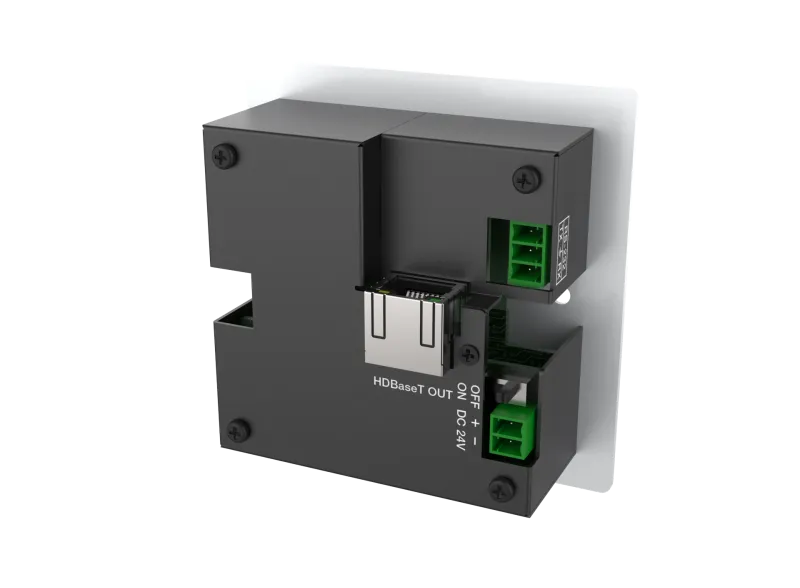

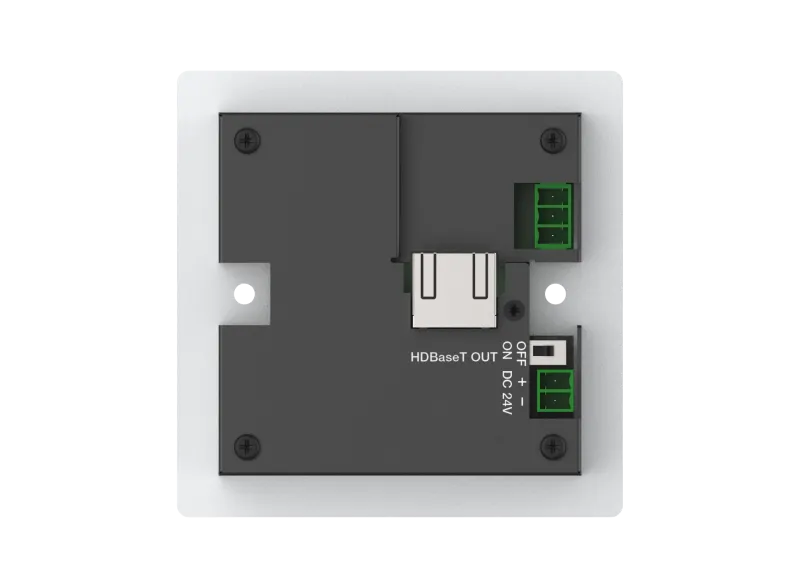

The product supports two-way Infra Red and RS-232 signal control. The wallplate is powered by the 24V Power over Cable (PoC) supplied by the receiver.

For product drawings, full specifications and operating instructions please see the product manual linked on this page.

Our compatible HDBaseT receiver (WPEX4K70-RX) is listed at http://www.amazon.co.uk/dp/B0BNJJB81Q

FEATURES



  • HDMI 2.0b and HDCP 2.2 compliant
  • Supports 18Gbps video bandwidth
  • Supports video resolution up to 4K@60Hz 4:4:4
  • Transmission distance can be extended up to 230ft / 70m for 1080p signal or 131ft / 40m for 4K signal via a single CAT6/6a cable
  • The transmitter supports audio embedding and the receiver supports audio de-embedding
  • Supports two-way IR and RS-232 control
  • Fits standard 70×70×35mm wall box
  • Face plate dimensions 86mm x 86mm
  • POC 24V or local DC 24V power supply

User Manual

Download(1 MB)
